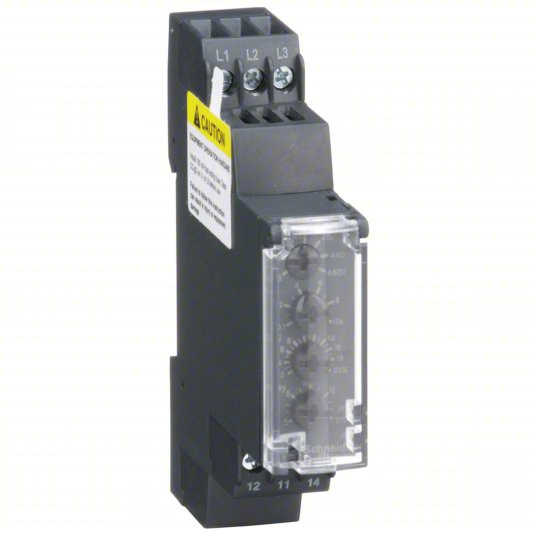

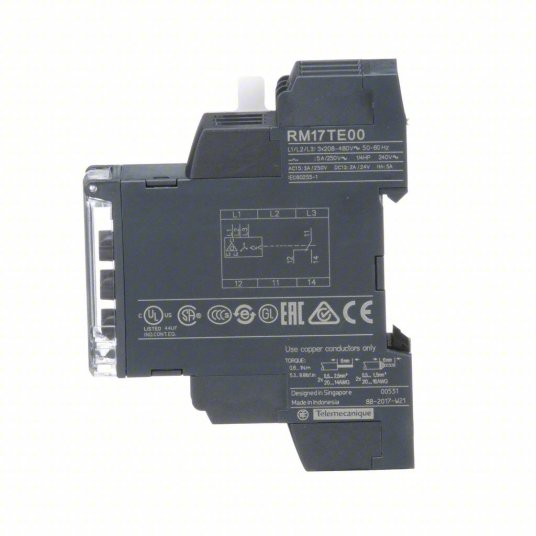

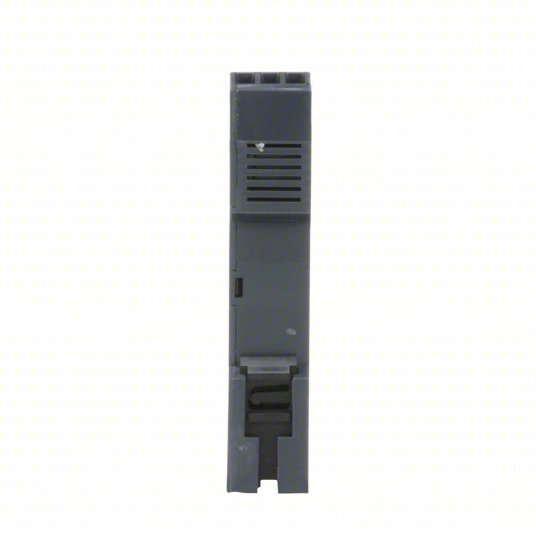

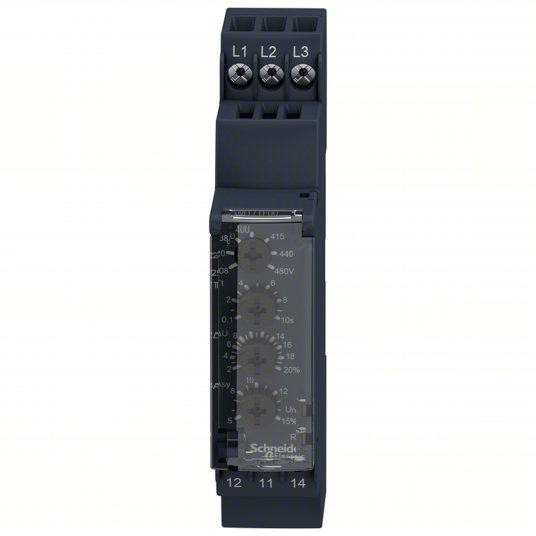

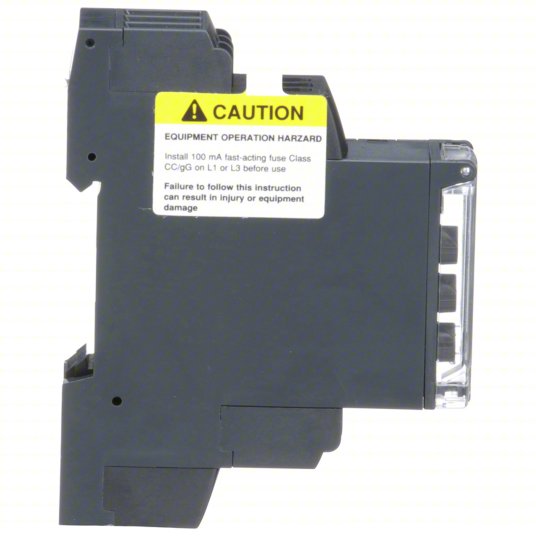

DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
  • DIN-rail phase check relay, rated 5A, 208–480v AC range
DIN-rail phase check relay, rated 5A, 208–480v AC range

DIN-rail phase check relay, rated 5A, 208–480v AC range

$461.48
Range of Product Harmony Control Relays
Relay Type Multifunction control relay
Product or Component Type 3-phase control relay
Relay monitored parameters Asymmetry
Phase sequence
Phase failure detection
Measurement range 208...480 V AC
Time delay type Adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault
Output contacts 1 C/O
Nominal output current 5 A
Contacts type and composition 1 C/O
[Uc] control circuit voltage 208...480 V
Product Specific Application For 3-phase supply
