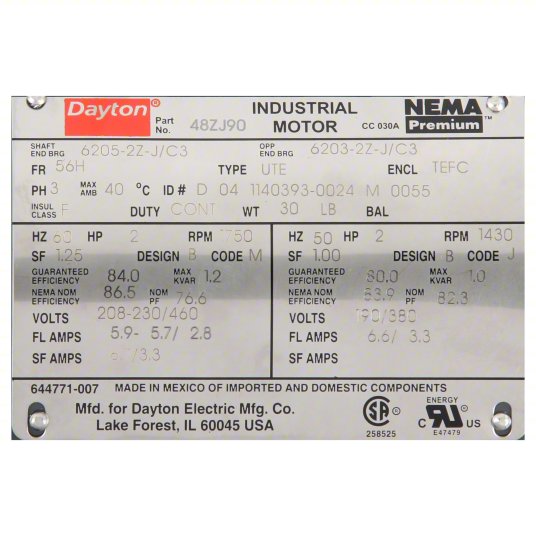

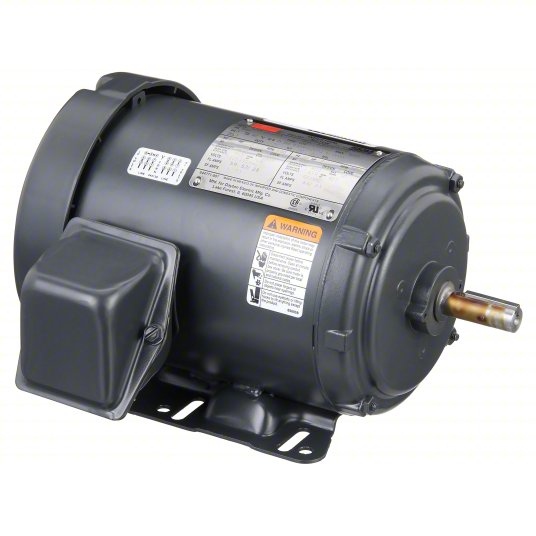

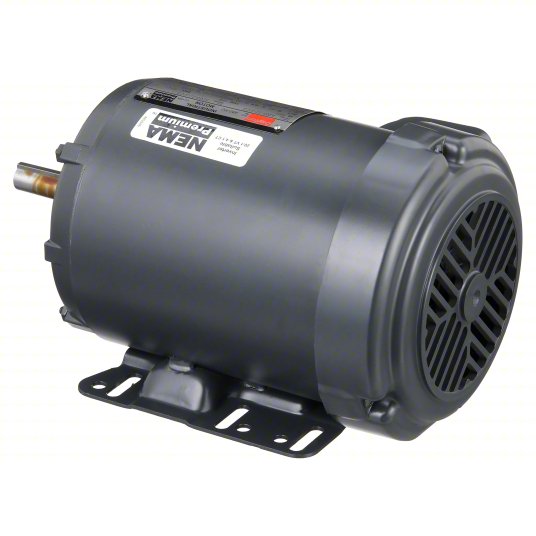

General Purpose Motor: 2 HP, 230/460V AC
$675.68
NEMA 56 frame three-phase general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface.
Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56HZ or 56C.
The letter “H” indicates that the frame has a set of mounting holes at 3" and 5", “Z” indicates that the frame has a nonstandard shaft, and “C” indicates that the motor can be face mounted.
These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
